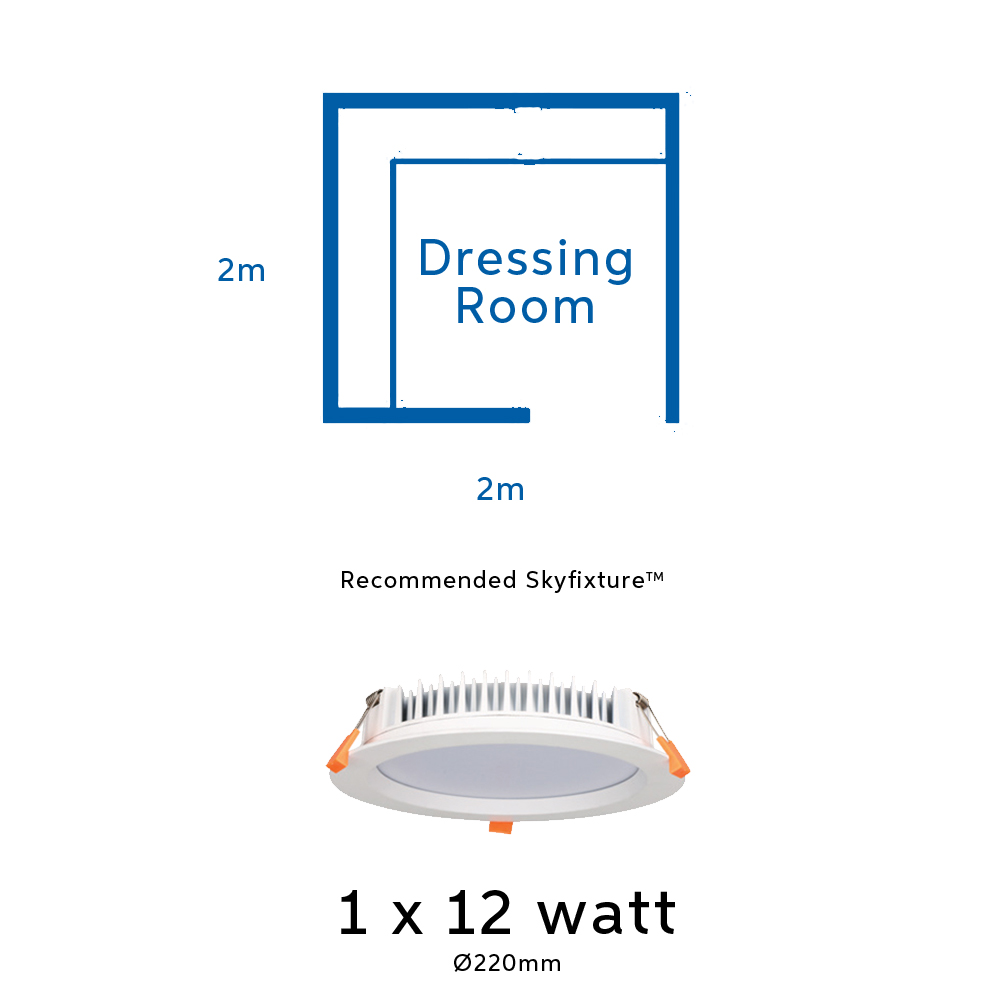

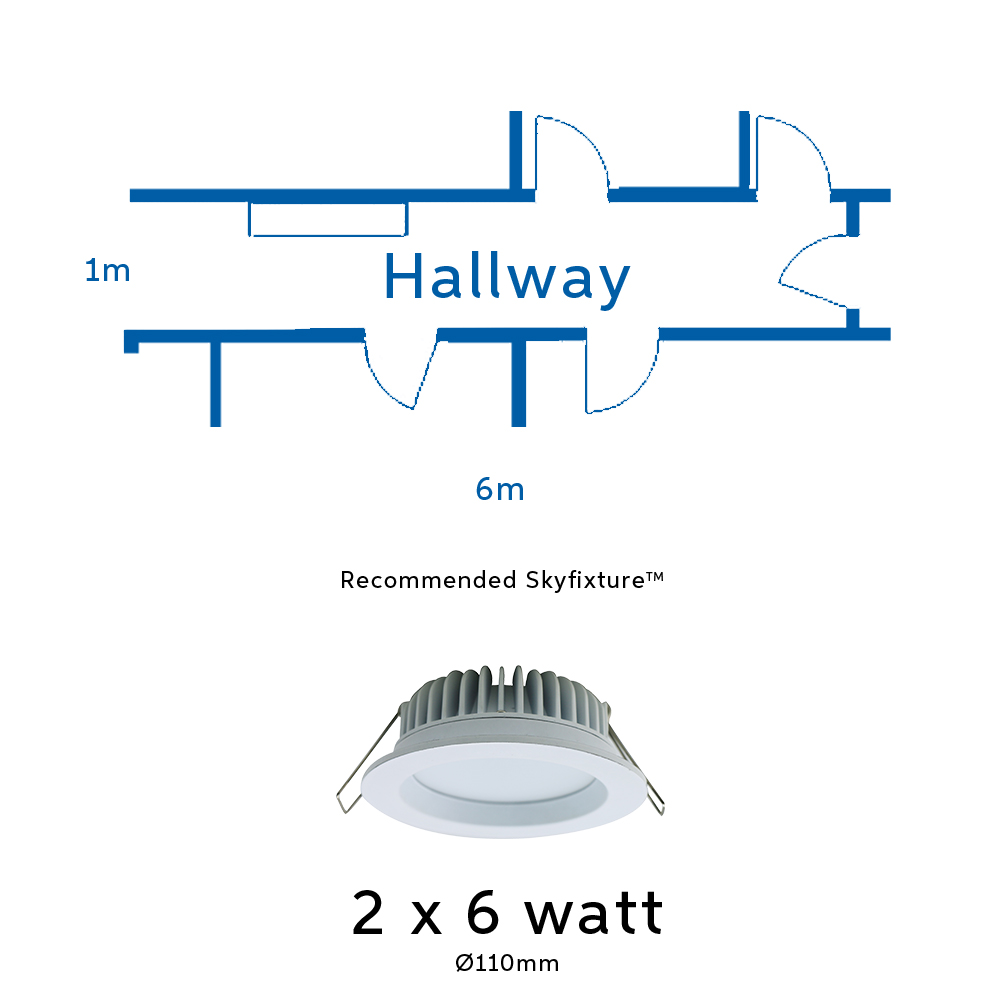

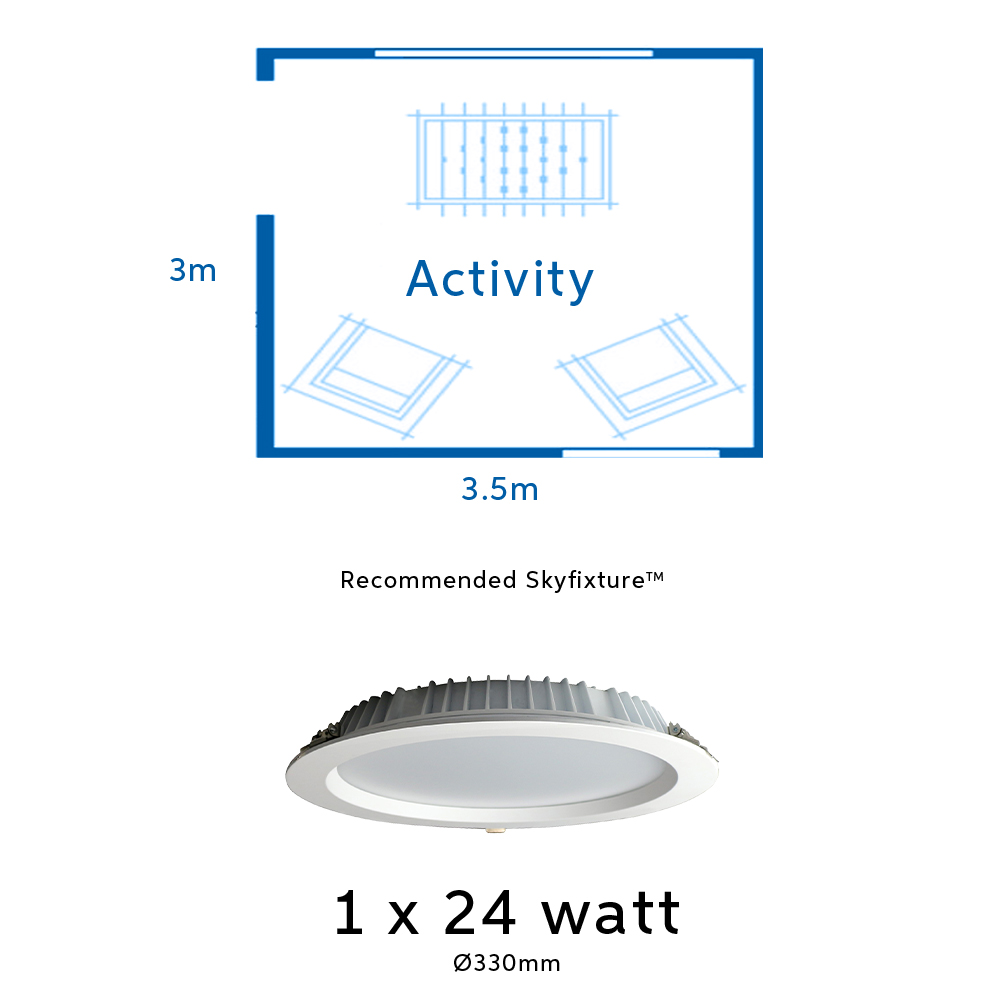

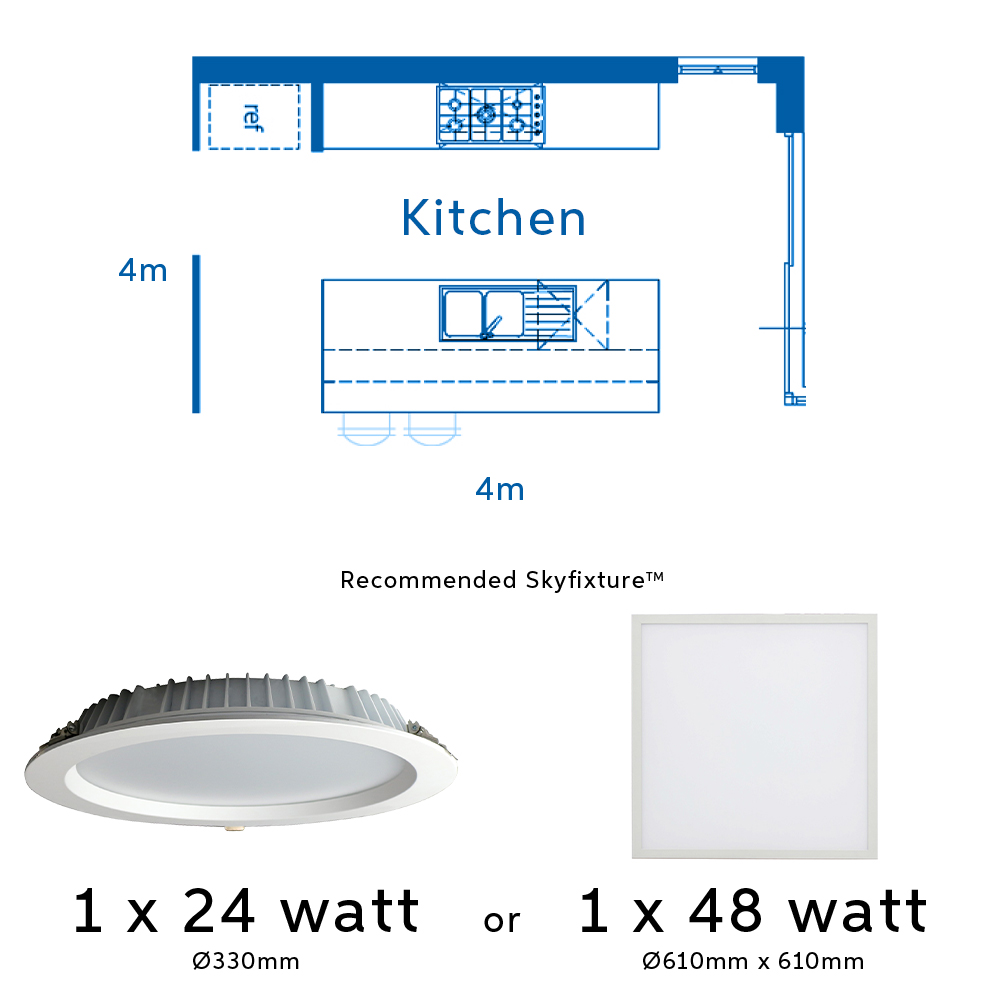

Check out our recommendations below or view our Redilight lux lighting guide by clicking here.

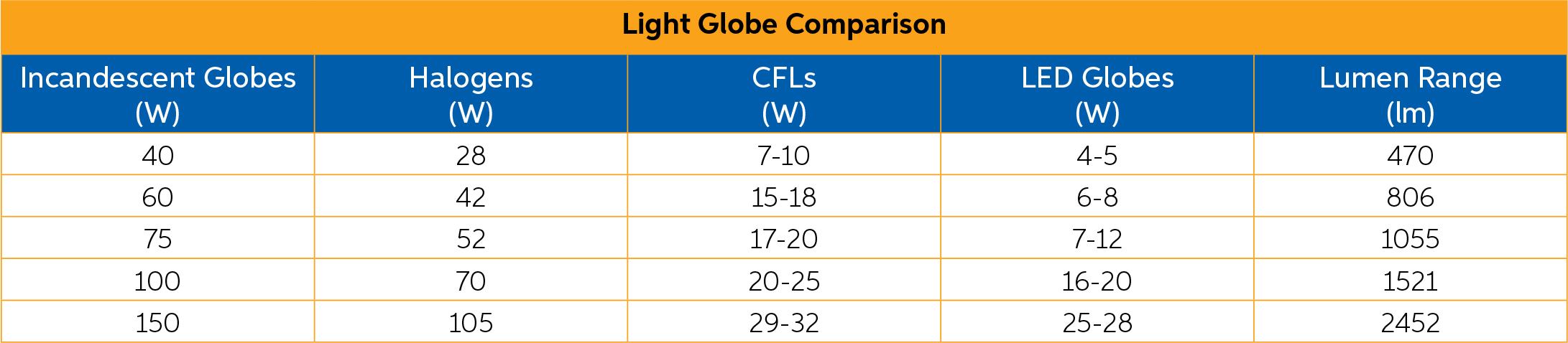

As a general guide:
• The 6 watt Redilight has an approximate lumen output of a traditional 50 watt incandescent globe in full sun.
• The 12 watt Redilight has an approximate lumen output of a traditional 75 watt incandescent globe in full sun.
• The 24 watt Redilight has an approximate lumen output of 2 x traditional 75 watt incandescent globes in full sun.
• The 48 watt Redilight has an approximate lumen output of 2 x traditional 100 watt incandescent globes in full sun.
Redilight Skyfixture™
Redilight’s range of LED Skyfixtures™ (Solar LED light fittings) were designed with emphasis on both aesthetics and performance.
When combining a superior finish with the exceptional output of Redilights high quality SMD LED’s you have a light that lasts for many years suiting almost any application.
Our unrivalled quality, including industry leading 7 Year Warranty, IC-4 and UL Certification means you have many years of energy efficient, trouble free light.
110mm ROUND RECESSED LIGHT FITTING (6 WATT)
APPEARANCE

WATTAGE
6 Watt
SUITABLE AREA
4m2
COLOUR TEMPERATURE
3000k (Warm White)
5000k (Day White)
110mm SQUARE RECESSED LIGHT FITTING (6 WATT)
APPEARANCE

WATTAGE
6 Watt
SUITABLE AREA
4m2
COLOUR TEMPERATURE
3000k (Warm White)
5000k (Day White)
220mm ROUND RECESSED LIGHT FITTING (12 WATT)
APPEARANCE

WATTAGE
12 Watt
SUITABLE AREA
8m2
COLOUR TEMPERATURE
3000k (Warm White)
5000k (Day White)
330mm SQUARE RECESSED LIGHT FITTING (24 WATT)
APPEARANCE

WATTAGE
24 Watt
SUITABLE AREA
16m2
COLOUR TEMPERATURE
3000k (Warm White)
5000k (Day White)
330mm ROUND RECESSED LIGHT FITTING (24 WATT)
APPEARANCE

WATTAGE
24 Watt
SUITABLE AREA
16m2
COLOUR TEMPERATURE
3000k (Warm White)
5000k (Day White)
330mm ROUND SLIMLINE SURFACE MOUNT LIGHT FITTING (24 WATT)
APPEARANCE

WATTAGE
24 Watt
SUITABLE AREA
16m2
COLOUR TEMPERATURE
3000k (Warm White)
5000k (Day White)
450mm FLAT PANEL SERIES SQUARE LIGHT FITTING (36 WATT)
APPEARANCE

WATTAGE
36 Watt
LUMENS
2800lm~3000lm
DIMENSIONS
L445mm x W445mm x H9.5mm
HOLE CUT-OUT
425mm x 425mm
(Recessed)
L460mm x W460mm
(Surface frame)
SUITABLE AREA
16 ~ 20m2
COLOUR TEMPERATURE
5000k (Day White)

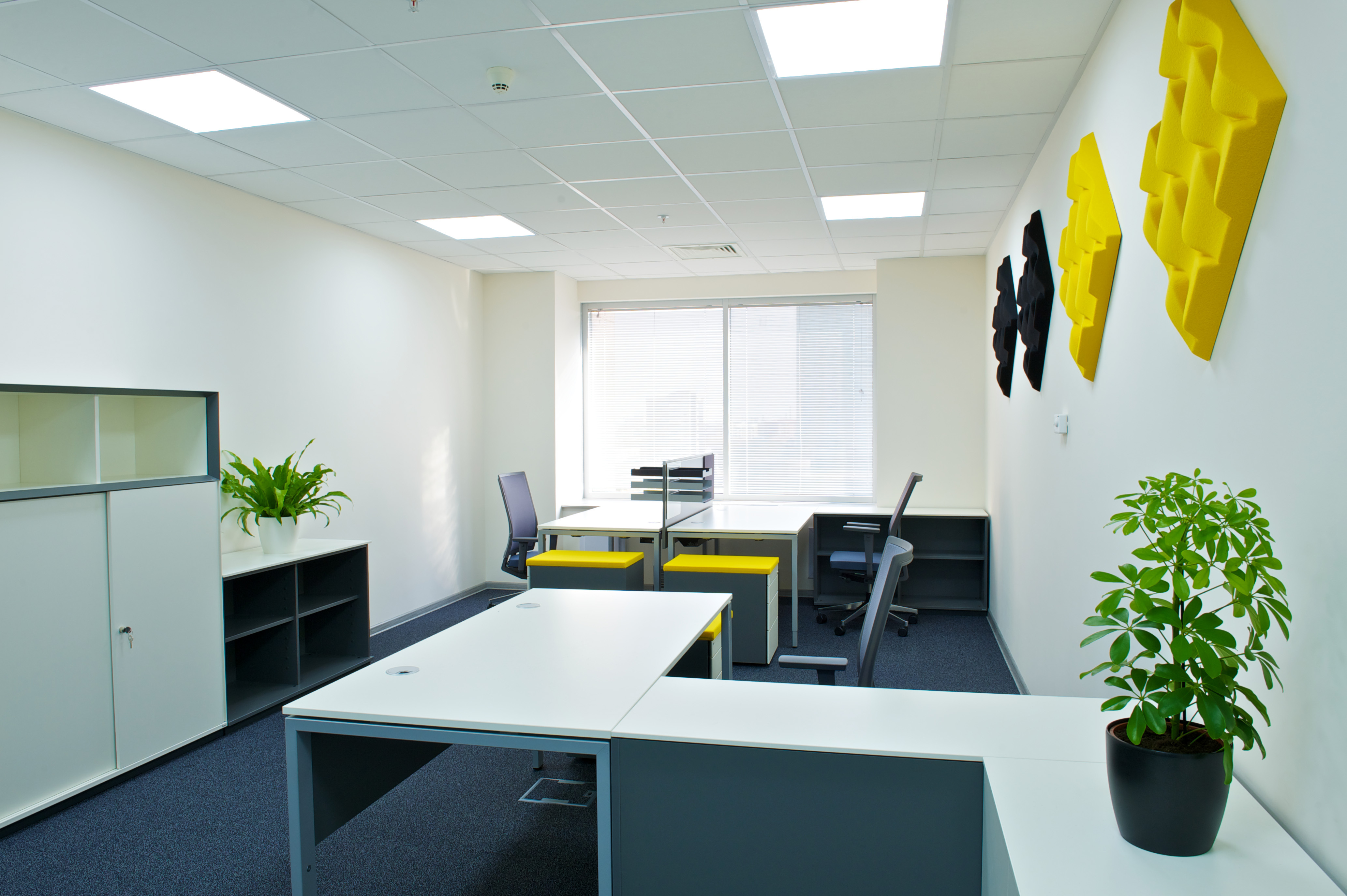

600mm FLAT PANEL SERIES SQUARE LIGHT FITTING (48 WATT)
APPEARANCE

WATTAGE
48 Watt
LUMENS
3500lm ~ 3800lm
DIMENSIONS
L595mm x W595mm x H9.5mm
HOLE CUT-OUT
575mm x 575mm
(Recessed)
L610mm x W610mm
(Surface frame )
SUITABLE AREA
16 ~ 20m2
COLOUR TEMPERATURE
5000k (Day White)
1200x300mm FLAT PANEL SERIES RECTANGLE LIGHT FITTING (48 WATT)
APPEARANCE

WATTAGE
48 Watt
LUMENS
3500lm ~ 3800lm
DIMENSIONS
L1195mm x W295mm x H9.5mm
HOLE CUT-OUT
1175mm x 275mm
(Recessed)
L1210mm x W310mm
(Surface frame)
SUITABLE AREA
16 ~ 20m2
COLOUR TEMPERATURE
5000k (Day White)
900x600mm FLAT PANEL SERIES RECTANGLE LIGHT FITTING (48 WATT)
APPEARANCE

WATTAGE
48 Watt
LUMENS
3500lm ~ 3800lm
DIMENSIONS
L895mm x W595mm x H9.5mm
HOLE CUT-OUT
875mm x 575mm
(Recessed)
L910mm x W610mm
(Surface frame)
SUITABLE AREA
16 ~ 20m2
COLOUR TEMPERATURE
5000k (Day White)
Solar Panel Kits
Redilight’s extra low voltage solar panels are available in a range of sizes to suit as many, or as few, energy efficient LED light fittings (known as a Skyfixture™) to achieve the perfect look.
The smaller 35 watt and 75 watt solar panels pack plenty of punch in a compact package for bespoke lighting solutions in hallways, bathrooms and more, while the larger 150 watt and 250 watt solar panels are powerful enough to handle the most demanding of lighting needs in open-plan areas such as offices, kitchens and living areas.
35 watt solar panel kit
The Redilight 35 watt Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted using either tile or metal roof bracket systems, or a pole, wall or ground mount.
The kit also includes 10m of DC Solar cable which is run from the Solar Panel down to the light fittings.

75 watt solar panel
The Redilight 75 watt Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted using either tile or metal roof bracket systems, or a pole, wall or ground mount.
The kit also includes 10m of DC solar cable which is run from the Solar Panel down to the light fittings.

150 watt solar panel
The Redilight 150w Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted on the roof using either tile or metal roof brackets, or a pole, wall or ground mount.
The kit includes a 5m length of 4mm2 twin DC cable to enable a central location in the roof cavity for the termination of light feeds, a junction box is provided.
There is also 20m of twin 1.84mm2 cable which is used to run from each light back to this junction box.

250 watt solar panel
The Redilight 250w Solar Panel Kit includes a high efficiency Multicrystalline PV panel which is mounted on the roof using either tile or metal roof brackets, or a pole, wall or ground mount.
The kit includes a 5m length of 4mm2 twin DC cable to enable a central location in the roof cavity for the termination of light feeds, a junction box is provided.
There is also 20m of twin 1.84mm2 cable which is used to run from each light back to this junction box.

Redilight Smart Options
Unlike traditional skylights, Redilight’s solar panel LED lighting system can deliver even when the sun is down with our unrivalled smart options.
Our Day-Night Kit and exciting new Sunline System enable you to simply and seamlessly alternate between solar power during the day and mains power at night, either automatically or on demand.
It really is the clever skylight alternative that complements modern lifestyles.
Day / Night Kit
The Redilight Day/Night kit was created so your Redilight light can be more than just a solar light during the day. The Day/Night kit allows you to choose between solar power and mains power from the grid. This is manually done by simply flicking a switch.
By having the switch mechanism in the Day position allows the light to be powered by the sun; if the switch is in the Night position than your light will be powered by the mains transformer. An additional on/off switch is provided for full control.
Remote Control
With the Redilight remote control you can easily adjust lighting levels of your Redilight Skyfixture (solar LED light fitting) to suit any occasion. Find the perfect level of light with the versatile dimming function, or simply turn the light on and off as you need.
The Redilight remote control can also be easily retrofitted to existing Redilight systems for the perfect smart LED lighting solution.
Sunline Kit
The Redilight Sunline is a fully-automated, smart power management system for your Redilight Skyfixtures. The Sunline seamlessly combines the cost effectiveness of solar power with the peace-of-mind of a low voltage mains back-up.
This exciting innovation allows you the option to eliminate unwanted variations in lighting levels due to clouds and shadows – the Sunline system guarantees continuous regulated light levels rain, hail or shine. It even works at night.
The Redilight Sunline’s unrivalled efficiency means it is the cost-effective solution to office and residential lighting needs.
